Brief introduction:

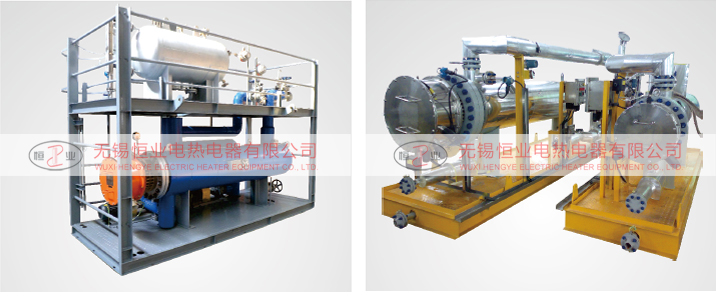

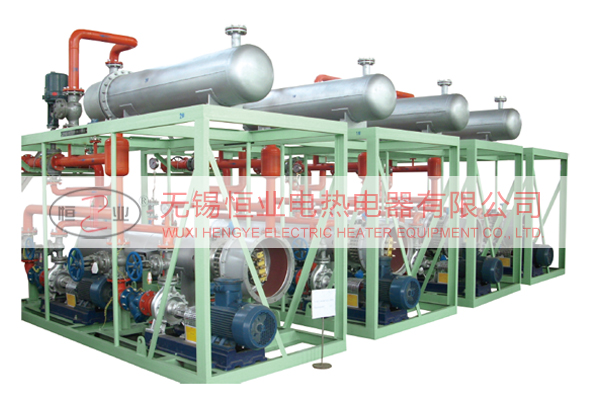

The explosion-proof electric heater (circulation system) consistsof the explosion-proof electric heater (fluid-type), expansion groove, storage tank, circulation pump, pipeline fittings, various physical sensors and electrical control devices.

Working principle:


Use heat transfer medium as carrier. Driven by the circulating pump, the heat transfer medium absorbs and takes away the heat released from electric heater. Its temperature increases. When the medium flows through the heat consuming equipment, its heat is absorbed by the equipment. And then the medium return to circulating pump for heating again. After times of such circulation, the temperature of the heat consuming equipment increases. As a result, it can meet heating process requirements automatically.

Features:


◆　The electric heater adapts the most advanced heating element: PTC alloy tubular heating element.
◆　Supply as blocks, simple installation and convenient usage.
◆　The heat medium can be conduction oil or other medium.
◆　Can be designed by customized parameters.
◆　Closed circulation heating to minimize the heat loss,significant in energy saving.
◆　Blast resistant construction, safe and reliable.
◆　Enables communication with the host computer monitor,high degree of automation, no need of staff on duty.
◆　No pollutions such as “drop”, “emit”, “leak” or noise.
◆　High precision of temperature control, which can meet various of technical accuracy requirements of different mediums.
◆　Designed according to thermodynamics, no dead angle.
◆　No coking or carbon phenomenon happens in heating tubes,which will prolong their service life.

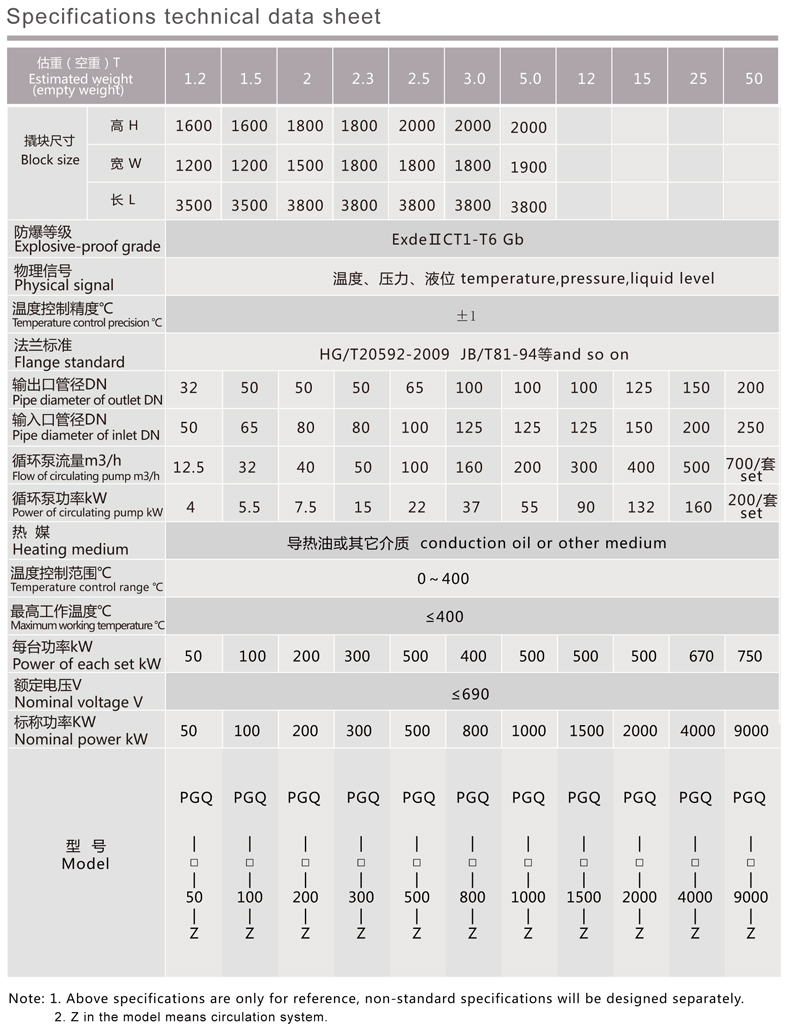

Key indicators and design parameters:


●　Nominal voltage : ≤690V、50Hz/60Hz
●　Nominal power: ≤3000kW(per set)
●　Explosive-proof grade: ExdeⅡCT1-T6 Gb；Electric heating elements ExeⅡC G b
●　maximum temperature in the outlet: ≤400℃
●　Temperature control modes:
①　temperature-controlled meter +power regulator
②　Human-computer interface + PLC+ power regulator
●　temperature control precision: ±1℃
