Electric Heaters

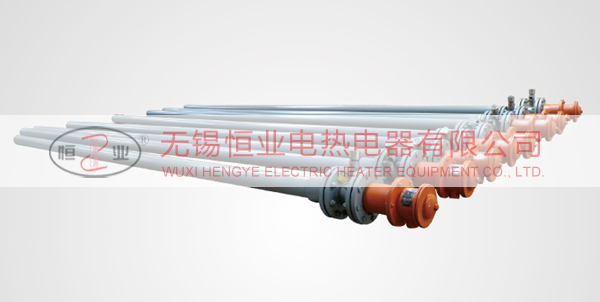

Tank electromagnetic heating rods



Brief introduction:


Tank electromagnetic heating rods are used for anti-freezing,anti-condensing, heat insulation and viscosity decreasing of media inside tanks, groove pools, liquid storage, gas storage containers in oilfields, refineries, chemical plants, oil depots and all industries, it has replaced the traditional steam, hot water and other heating methods, with significant energy saving, high heat efficiency and other advantages, it is an ideal electric heating equipment.

Principle of electromagnetic heating:


Tank electromagnetic heating rods are devices using electromagnetic induction principle to convert electric energy to heat energy. Heat generation has two aspects:
1.AC current will produce alternating magnetic field when passing through the coil, while magnetic induction lines inside the magnetic field passing through magnetic conductive metal materials they will produce numerous small vortex in the metal bodies, making metal materials heated by themselves in a high speed.
2.AC current will generate heat when passing through the coil,add two parts of heat can achieve the effect of high efficiency heating.

Performance characteristics:


Tank electromagnetic heating rods produced by the company are characterized in following:
Mainly relying on three-phase structure, after capacitive reactive power compensation, the power factor reaches about 0.95.
1、High efficiency energy saving
Heat efficiency reaches more than 98%, under the same conditions, it can save more than 30% power than the resistive heating method, the warm-up time will be cut down by 2/3.
2、 Reliable running
Temperature intelligent control system and complete protection system, can ensure the safe and reliable running of equipment.
3、Low running costs
The heating parts have lower heat load, with long service life. In the follow-up stages barely need any maintenance costs.

Technical parameters:


Rated voltage: 380V/220V, 50Hz/60Hz;
Power range: 10~40kW/pc;
Dielectric strength: ≤1800V/min;
Protection level: Ip66;
Maximum operating temperature of heating: <100℃;

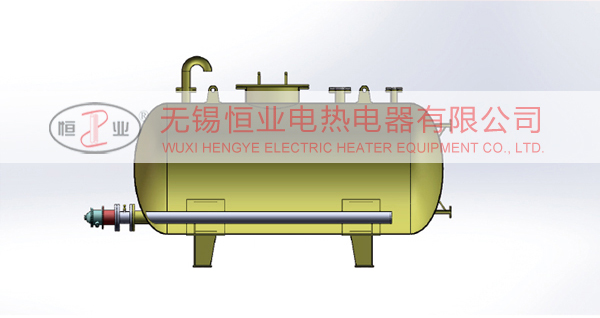

Installation:


Installation methods and supporting accessories of the electric heating rods are the same with that of PTC tank electric heating rods
