Electric Control Series

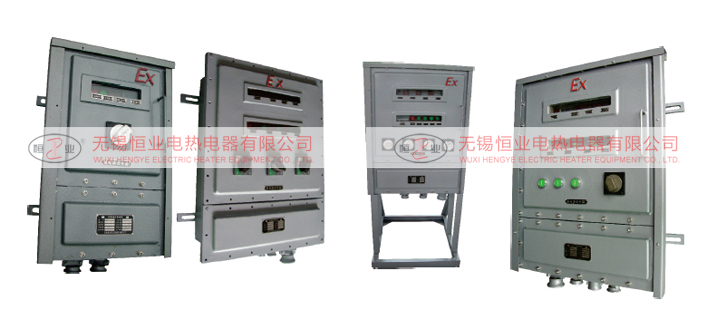

Explosion-proof distribution box

Brief introduction:


Explosion-proof distribution box is used in explosive gas atmosphere on the land or at sea. It controls the power switch and the temperature of explosion-proof electrical heater, electric tracing band. It has functions of temperature display and control. This product is designed, authenticated,manufactured basing on explosion proof electrical standards GB3836.1.2.3-2010 strictly, and has got the national
certificate.All performance indexes have metthe requirements of national explosion-proof standards. It can work safely in II explosive gas hazardous areas.

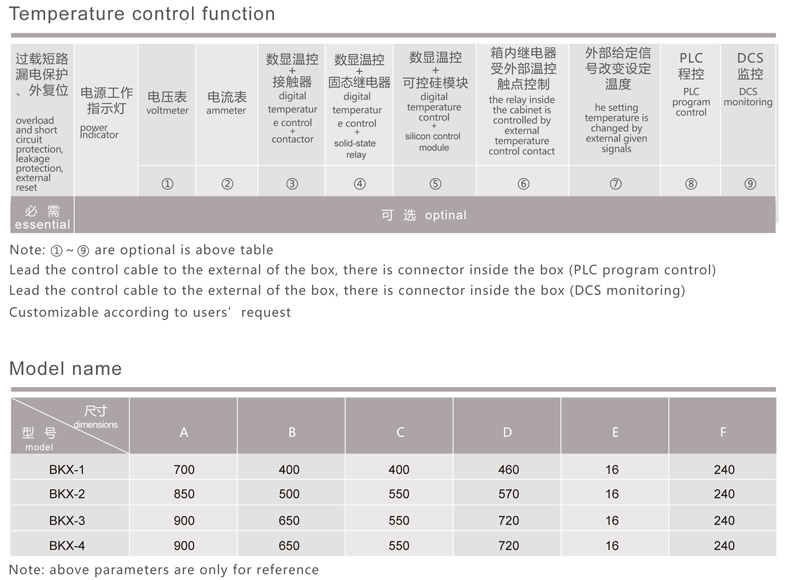

Performance parameters:


Nominal voltage: 380V、220V 50Hz/60Hz
Branch operating current: ≤160A
Branch number: 1~8 (raise specific requirements according
to certain needs)
Explosive-proof grade: ExdⅡBT4 ExdⅡCT4
Protection grade: ≤IP65
Temperature control range: 0~800℃
Operating mode:without opening the cover,temperature adjustable
